Custom VK63 and VK64 Chronograph Watch Dials
Custom 28.5mm and 31.5mm Meca-Quartz Dials
Artisan Dials creates custom watch dials for the Seiko/TMI VK63 and VK64 meca-quartz chronograph movements. Both movements combine accurate quartz timekeeping with mechanical-style chronograph operation. The VK63 uses a traditional three-subdial layout, while the VK64 offers a cleaner two-subdial arrangement.
Available Dial Sizes
Our custom VK63 and VK64 dials are available in two primary sizes. Both maintain the exact movement-controlled subdial positions.
28.5mm
The most common VK63/VK64 dial size. Fits the majority of 40–42mm chronograph cases. Movement-controlled subdial positions are fixed at this diameter.
31.5mm
Provides additional design space around the functional layout. Suits larger 43–45mm cases. Must be made specifically for the selected VK63 or VK64 movement.
The VK63 Dial Layout
The VK63 is a three-register meca-quartz chronograph. Its dial must accommodate three subdials, a central chronograph-seconds hand, and a date window.
Records up to 60 elapsed chronograph minutes. Works in conjunction with the large central chronograph-seconds hand when timing an event.
Displays continuously running seconds — confirming the watch is running even when the chronograph is not active.
Displays the current time on a 24-hour scale. Follows the main hour hand and is not independently adjustable as a second time zone.
The large center-mounted seconds hand measures elapsed chronograph seconds. When reset, the hand snaps rapidly back to 12 o'clock.
The VK63 includes a calendar function. The date may be displayed through a properly positioned window or concealed beneath a no-date dial.
Understanding the VK64 Dial Layout
The VK64 is a two-register, or bicompax, meca-quartz chronograph. It provides the same mechanical-style chronograph action as the VK63 but eliminates the running-seconds subdial at 6 o'clock. This produces a cleaner, more symmetrical dial with additional room for artwork, lettering and hour markers.
Records up to 60 elapsed chronograph minutes. Works with the large central chronograph-seconds hand when timing an event.
Displays the current time on a 24-hour scale. Follows the main hour hand and is not independently adjustable as a second time zone.
The large center-mounted seconds hand measures elapsed chronograph seconds. When the chronograph is reset, the hand snaps rapidly back to 12 o'clock.
Unlike the VK63, the VK64 does not have a running-seconds subdial at 6 o'clock. This leaves the lower portion of the dial open for a logo, model name, artwork or other design elements.
The VK64 includes a calendar function. The date may be displayed through a properly positioned window or concealed beneath a no-date dial for a cleaner design.
VK63 and VK64 Layout Comparison
Side by side — every functional difference that affects how your dial must be designed.
Which Movement Should You Choose?
Choose the VK63 When You Want:
- A traditional three-subdial chronograph
- Visible running seconds
- A technical or instrument-panel appearance
- A busier, performance-oriented design
- Three subdials incorporated into the artwork
Choose the VK64 When You Want:
- A clean two-subdial chronograph
- More open space at 6 o'clock
- A balanced bicompax layout
- A vintage racing or dress-chronograph appearance
- More room for artwork, a logo or model name
Designing Around the Subdials
A VK63 design must accommodate three subdials, while a VK64 design uses two. In either movement, the subdials should be incorporated naturally into the artwork rather than appearing as unrelated circles placed over the design.
Turn Your Idea Into a Working Chronograph
VK63 and VK64 dials must do more than look attractive. Their subdial openings, center holes, date positions, artwork and hour markers must align precisely with the selected movement. Choose the three-register VK63 for a technical, instrument-inspired appearance or the two-register VK64 for a cleaner bicompax design. Artisan Dials combines original artwork with movement-specific preparation to create a working chronograph dial designed around your story.
Your Story, Told Through Time.

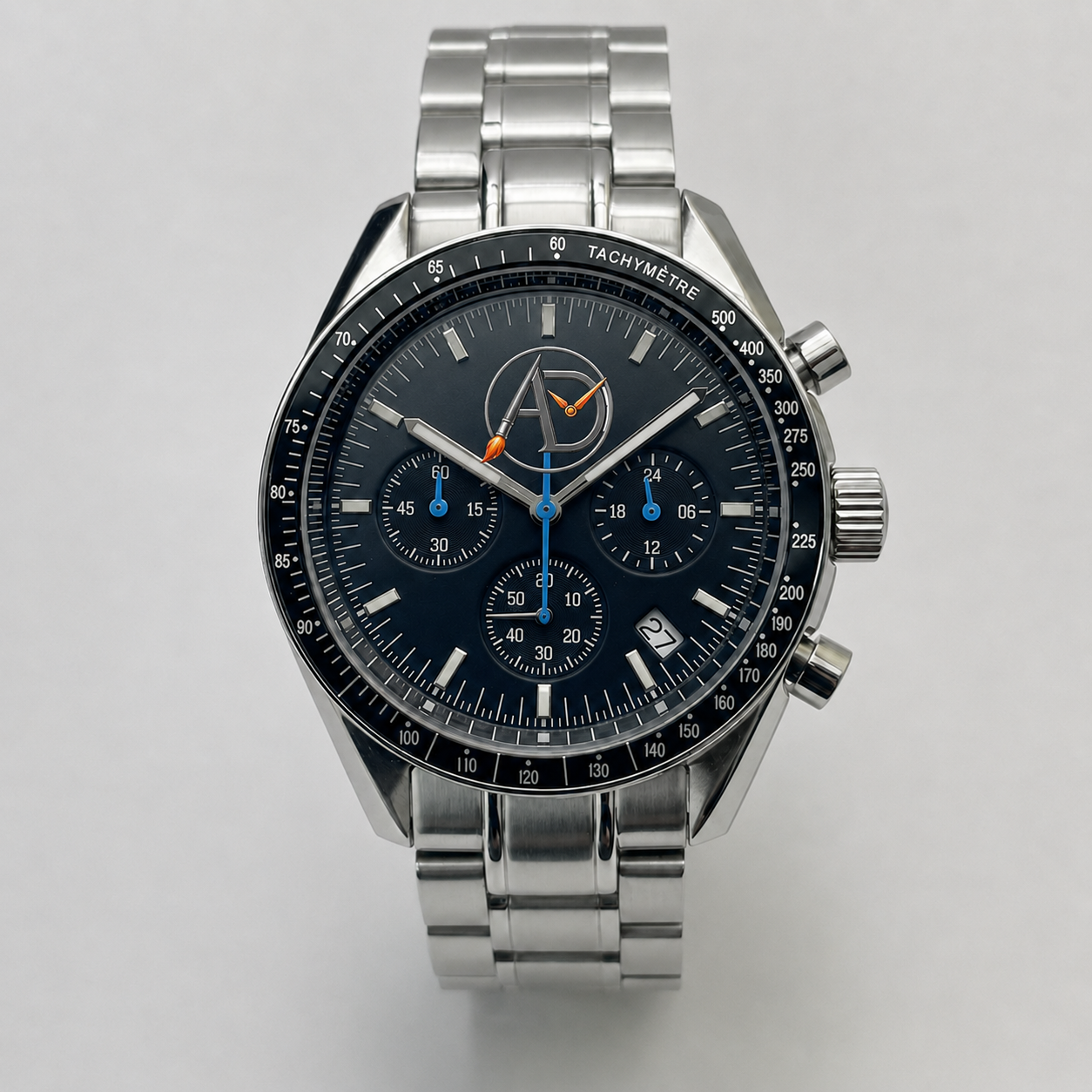

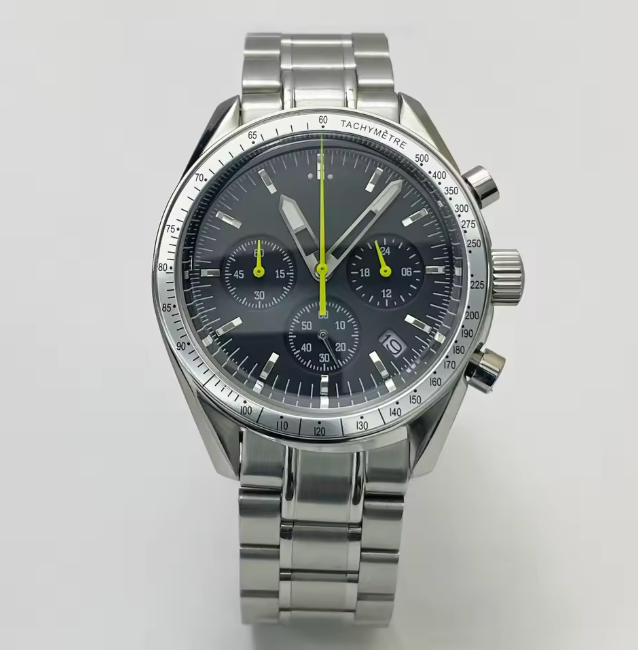

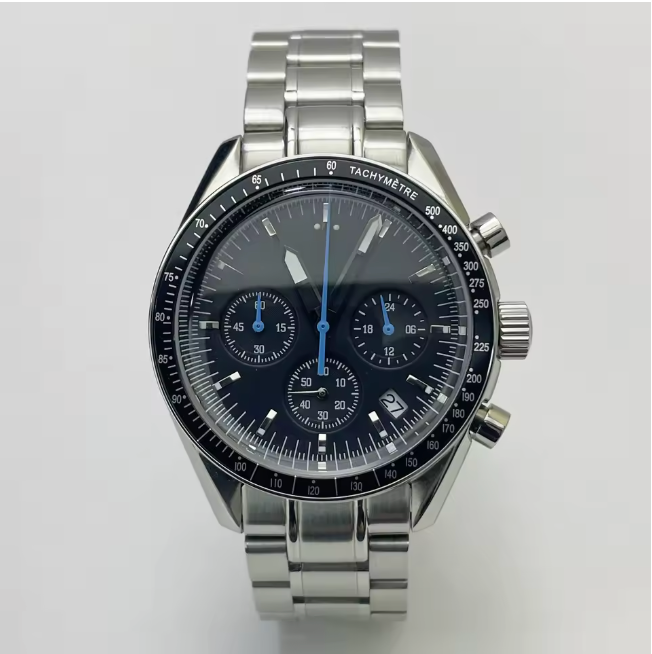

Finished Chronograph Builds
A custom VK63 or VK64 dial paired with a complete case, movement, and bracelet. This is what your design looks like on the wrist.
Complete chronograph builds include VK63 or VK64 movement, case, crystal, pushers, crown, and bracelet or strap. Start your design →
